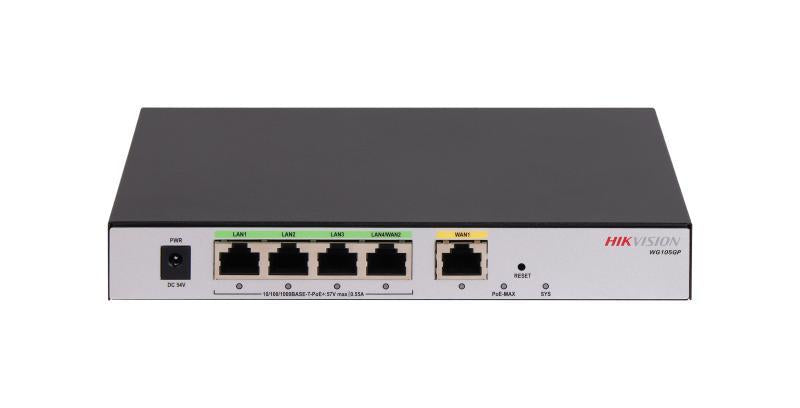

All in One 5 Port PoE Router 2 WAN DS-3WG105GP-SI

Metal

0.5 kg (1.1 lb)

0 °C to 40 °C (32 °F to 104 °F)

5% to 95% (no condensation)

-40 °C to 70 °C (-40 °F to 158 °F)

5% to 95% (no condensation)

190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'')

AC Router × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Power Supply Adaptor × 1,Power Cord × 1

Max. 65 W

1 Gigabit WAN Port

4 Gigabit PoE LAN Ports with 1 LAN/WAN Switchable

PoE Ports: Ports 1to 4 , IEEE802.11af/at

10 Gbps

256 MB

128 MB

54 VDC, 1.17A

Hardware Resetting Button

32

100

1 Gbps

Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods

Up to 2 WAN Load balancing

Load balancing based on the destination address of the carrier,Load balancing based on link bandwidth,Load balancing based on user (IP address),Policy-based routing (PBR) for forwarding over specified lines,End-to-end link detection and backup functions

Auto AP serial number entry,AC discovery (DHCP option43, DNS),Assign basic AP network parameter through AC (Supported: Static IP, VLAN, Connected AC address)

Open System,Shared-Key,WPA,WEP-64/128, dynamic WEP,WPA2,WPA3

ARP,VLAN,ARP (gratuitous ARP)

IPv4,DDNS,UPnP,DHCP Server,NTP Client,Multicast,PIM,MLD Snooping,IGMP Snooping,Multicast group

IPSec VPN:,Support 100 IPSec connections,Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms),Support IKE to automatically establish SA,Support MD5 and SHA-1 authentication algorithms,Support IKE main mode and aggressive mode,Support NAT-T traversal,Support IPSec connection configuration by domain name (DDNS)

40000 Max. Access

AP Discovery,AP Management,Support Multi-SSID Configuration,SSID Hiding,Channel Setting

User Authentication,Support user blacklist and whitelist,Controls the number of access users:,Based on APs,Based on SSIDs,Logs out users in any of the following ways:,Using RADIUS DM messages,Using commands,Support various methods to view information:,Displays the number of online users in an ESS, AP, or radio.,Collects packet statistics on air interface based on user.

Firewall Policy,DDoS Defending,IP/MAC/URL Filtering,ARP Defending,Support DDoS attack prevention and statistics,Support Prevent WAN port ping,Support Prevent TCP syn scan,Support Prevent TCP Stealth FIN scan,Support Prevent TCP Xmas Tree scanning,Support Prevent TCP Null scan,Support Prevents UDP scanning,Support Prevent Land attacks,Support Protects against Smurf attacks,Support Protects against WinNuke attacks,Support Protect against Ping of Death attacks,Support Protect against SYN Flood attacks,Support Protect against UDP Flood attacks,Support Protect against ICMP Flood,Support Protect against IP Spoofing,Support Prevent Fragmented Packet Attack,Support Protect against TearDrop attack,Support Protect against Fraggle attack

Support device management via web.,Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.,Support remote management via Hik-Partner Pro. ,Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.,Support port mirroring for fault locating.

Support upgrade by Web,Support upgrade by HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
